CR522AU/CR522A FM1108 13.56Mhz NFC TYPE A HF RFID Reader
Detailed Product Description
Core: ARM@ 32- bit CortexTM -M0 CPU
MIFARE 1K(7Byte UID S50)/4K UltraLight ,MIFARE ULTRALIGHT C ,NTAG203 213 215 216
SRI512,ST25TB176,ST25TB512,ST25TB04K .
(COMMENT: MIFARE® and MIFARE Classic® are trademarks of NXP B.V.)
Application scopes
- e-Government
- Banking & Payment
- Access Control
- Network Security
- e-Purse & Loyalty
- Transportation
- kiosk

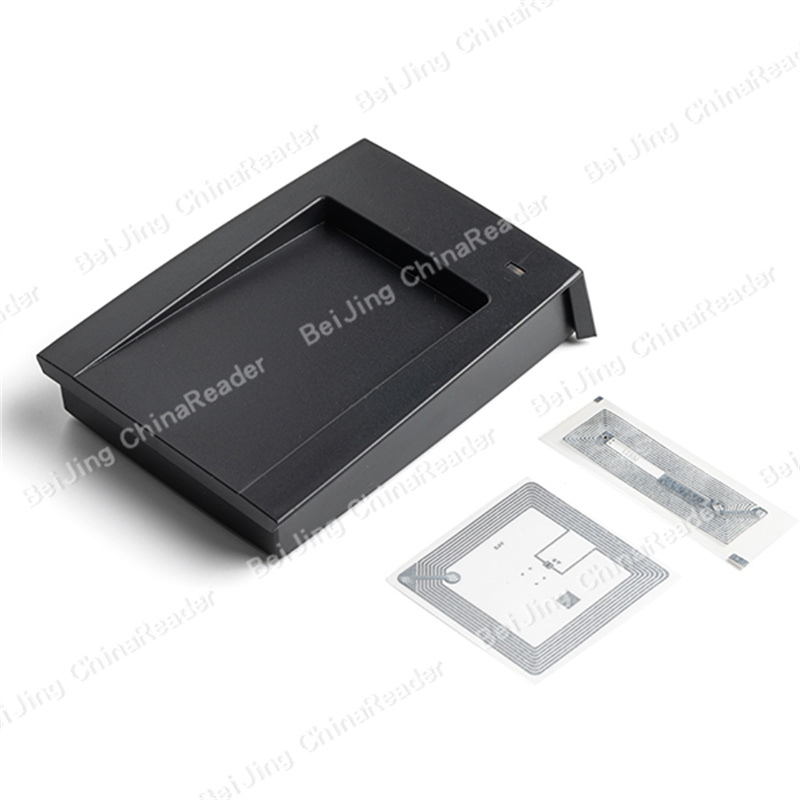

CR522A TYPE A Reader Description
| Name | CR522A series Proximity Reader Module | |||
| Weight | 240g | |||
| Dimensions | 110 * 80 * 26 (mm) | |||
| Temperature | -20一+85C | |||

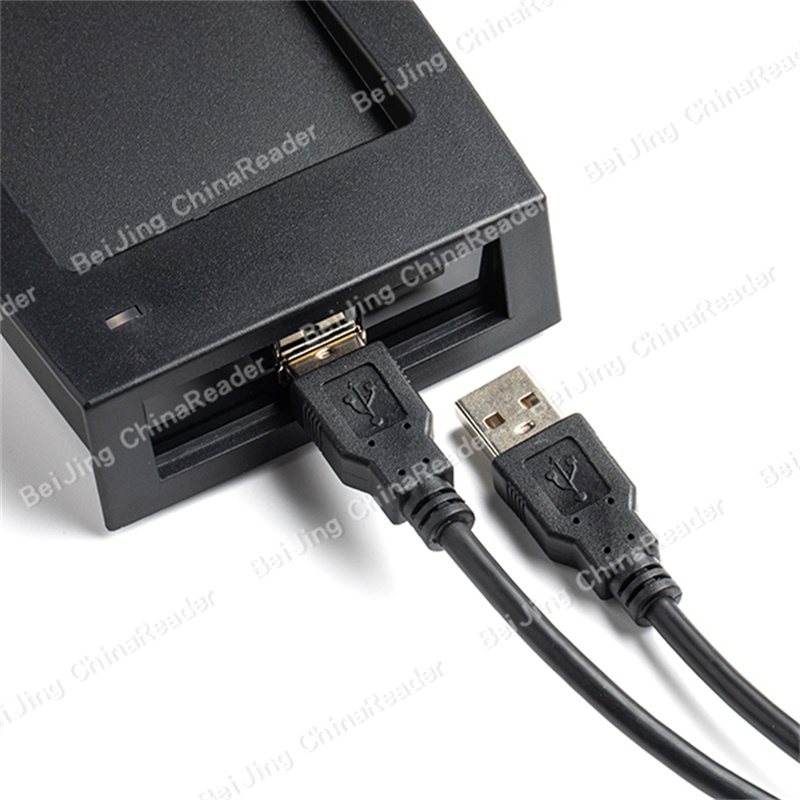

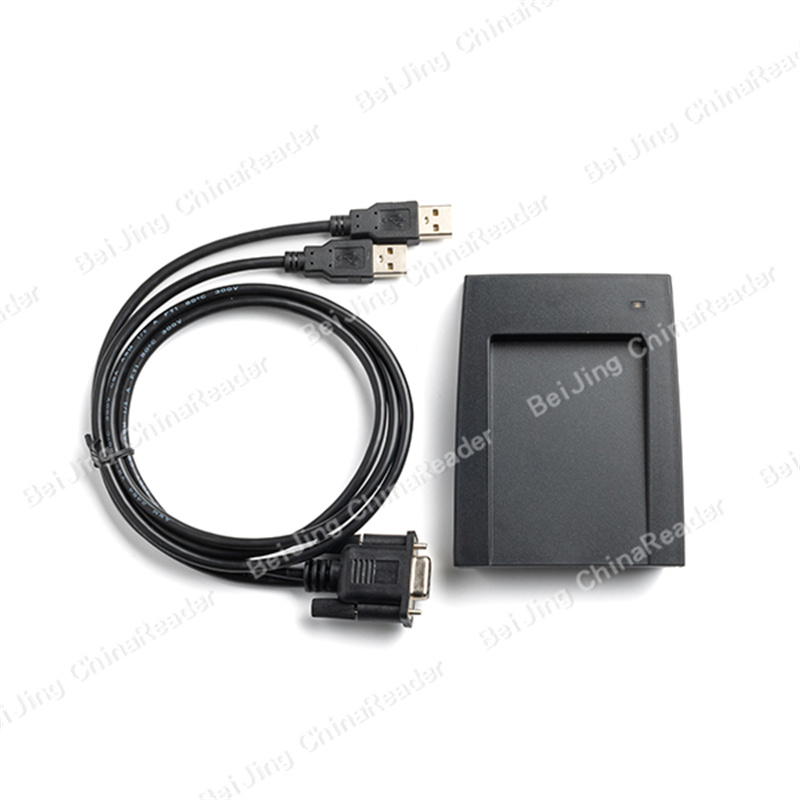

| Interface | USB Virtual RS232 ,RS232 | |||
| Read Range | up to 8cm | |||
| Frequency | 13. 56MHz | |||
| Support | ISO14443A | |||
| MIFARE® 1K，MIFARE®4K, MIFARE Utralight®, MIFARE® DESFire,MIFARE® Pro，
Ntag, IFARE Utralight®C,SLE66R35,Fm1108,TYPE A CPU card |
||||
| Power Requirement | DC 5V ,70ma - 100ma | |||
| MCU | Core: ARM® 32- bit CortexTM -M0 CPU | |||
CR522 Serial Product Description
| Model | Description | Interface &
Others |
| CR522 | TYPE A/B ,MIFARE® 1K/4K,Ultralight®C,FM1108, | USB Vitrual RS232, RS232 |
| CR9506 | ISO15693 TYPE A/B: MIFARE® 1K/4K,Ultralight®C,FM1108,
ST25TB512,ST25TB04K ISO15693 l.code sli,Ti 2k , SRF55V01, SRF55V02 ,SRF55V10 ST25TV512,ST25TV02K |
USB Vitrual RS232, RS232 |
Service
1. High quality
2. Competitive price
3. 24 Hours Quickly Feedback
4. Free SDK
5. ODM/OEM Customized Design
Similar Product List for reference
| Model | Description | Interface &
Others |
| CR6085 | TYPE A/B ,MIFARE® 1K/4K,Ultralight®C,FM1108, | USB Vitrual RS232, RS232 |
| CR9506 | ISO15693 TYPE A/B: MIFARE® 1K/4K,Ultralight®C,FM1108,
ST25TB512,ST25TB04K ISO15693 l.code sli,Ti 2k , SRF55V01, SRF55V02 ,SRF55V10 ST25TV512,ST25TV02K |
USB V |
