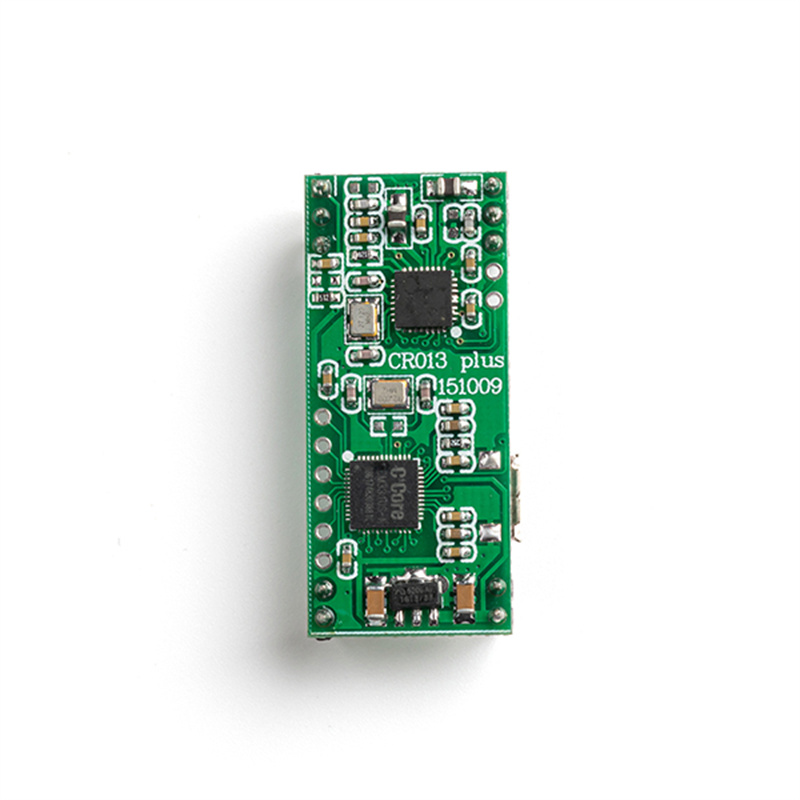

CR013 PLUS HF RFID Reader Module TYPE-A-B, MIFARE®1K 4K MIFARE®Ultralight® C ntag serial, MIFARE® DESFire®
Specification
32-bit reduced instruction set computer (RISC) architecture
On-chip, 16K Bytes of static random-access memory (SRAM):
Single cycle byte, half-word (16-bit), and word (32-bit) reads and writes
On-chip, 16K Bytes of static read only memory (ROM):
Single cycle byte, half-word (16-bit), and word (32-bit) read access.
On-chip 256K Bytes embedded flash (EFLASH)
USB Controller:
USB 2.0 Compliant with on-chip integrated PHY module
Certified for High Speed (480MHz) USB and Full Speed (12MHz) USB
UTMI+ Level 2 transceiver interface
Supports eight transmit/receive
endpoints(ep0,ep1,ep2,ep3,ep4,ep5,ep6,ep7)
Aes, RSA, Des Jet Fast to visit Ultralgith® C, MIFARE Plus® cards
NXP RC522 or RC523 Reader IC, support TYPE A Or TypeA&TYPE B

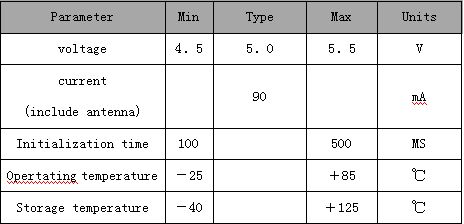

Technical
- Power supply: 3V or 5V, 40-80mA
- Interface: UART ,USB HID ,USB virtual RS232 , USB CCID, USB emulation Keyboard Options;
- Transmission speed: Default 19200 bps
- R/W distance of up to 60mm ~ 100mm ,depending on TAG and Antenna Size.
- Storage temperature: -40 ºC ~ +85 ºC
- Operating temperature: -25 ºC ~ +70 ºC
- CR013A Plus TYPE A support MIFARE® 1k ,4k,Ultralight® ,Ultralight® C, Ntag serial,
- Sle66r01P, MIFARE Plus® ,MIFARE DESFire® Pipe mod , C =TL 14443-4
CR013B Plus TYPE B C=TL 14443-4
Communication setting
The communication protocol is byte oriented. Both sending and receiving bytes are in hexadecimal format. The communication parameters are as follows,
Baud rate: 19200 bps （default, 4800 ~ 115200 volatile Setting）
Data: 8 bits
Stop: 1 bit
Parity: None
Flow control: None
Dimension 41×18（mm） Note : The module’s pin same as DIP32

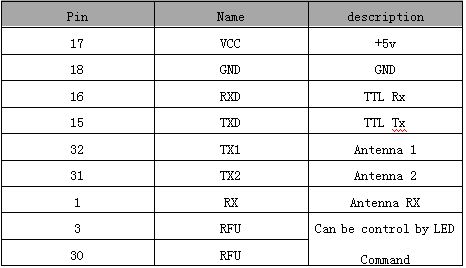

PIN
Character
